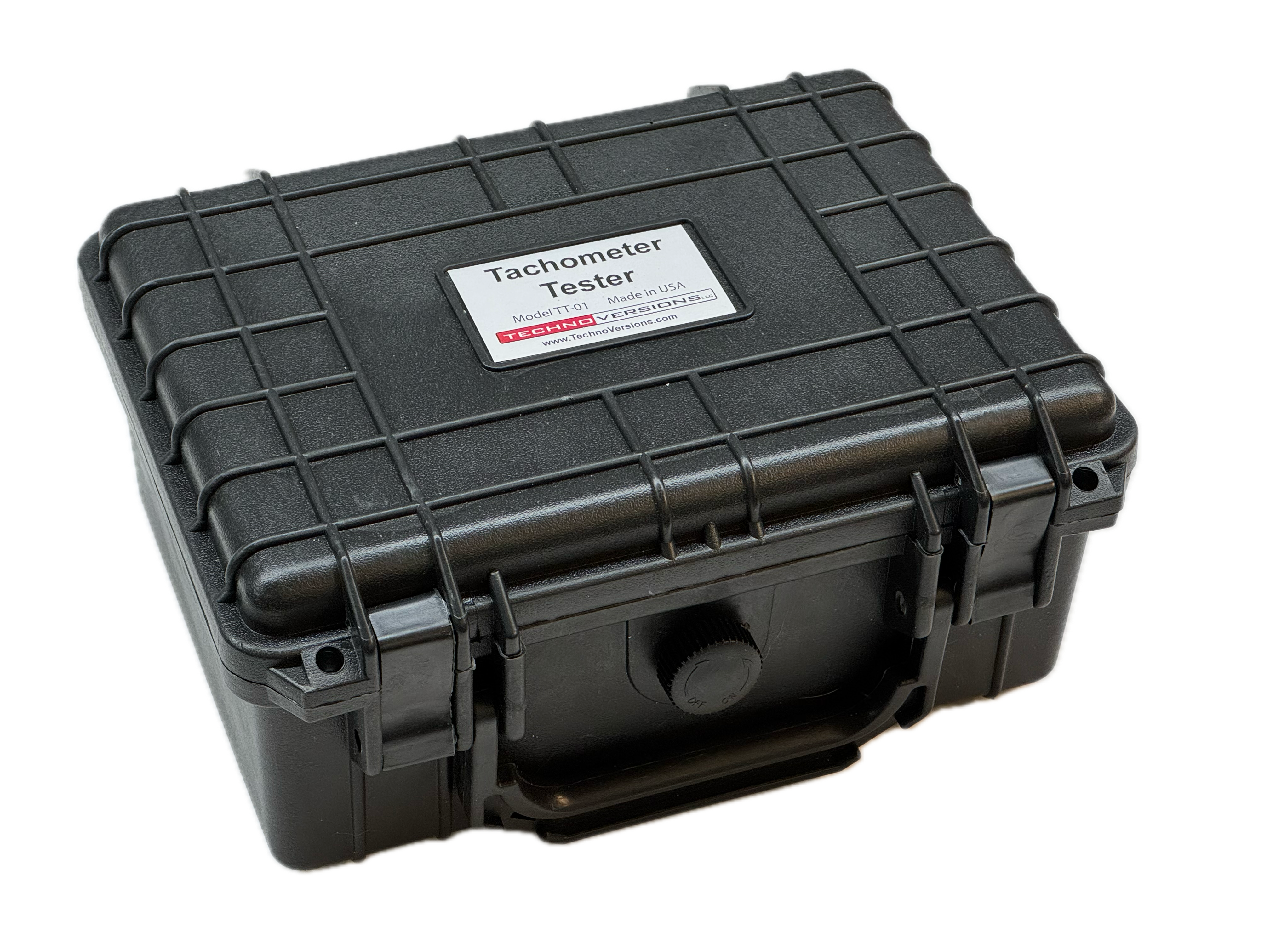

TechnoVersions Model TT-01 Tachometer Tester

TechnoVersions Model TT-01 Tachometer Tester

Wonder if that tachometer is working? Wonder if it is accurate? The Technoversions Tachometer Tester is a professional-grade solution for testing almost all types of automotive tachometers.

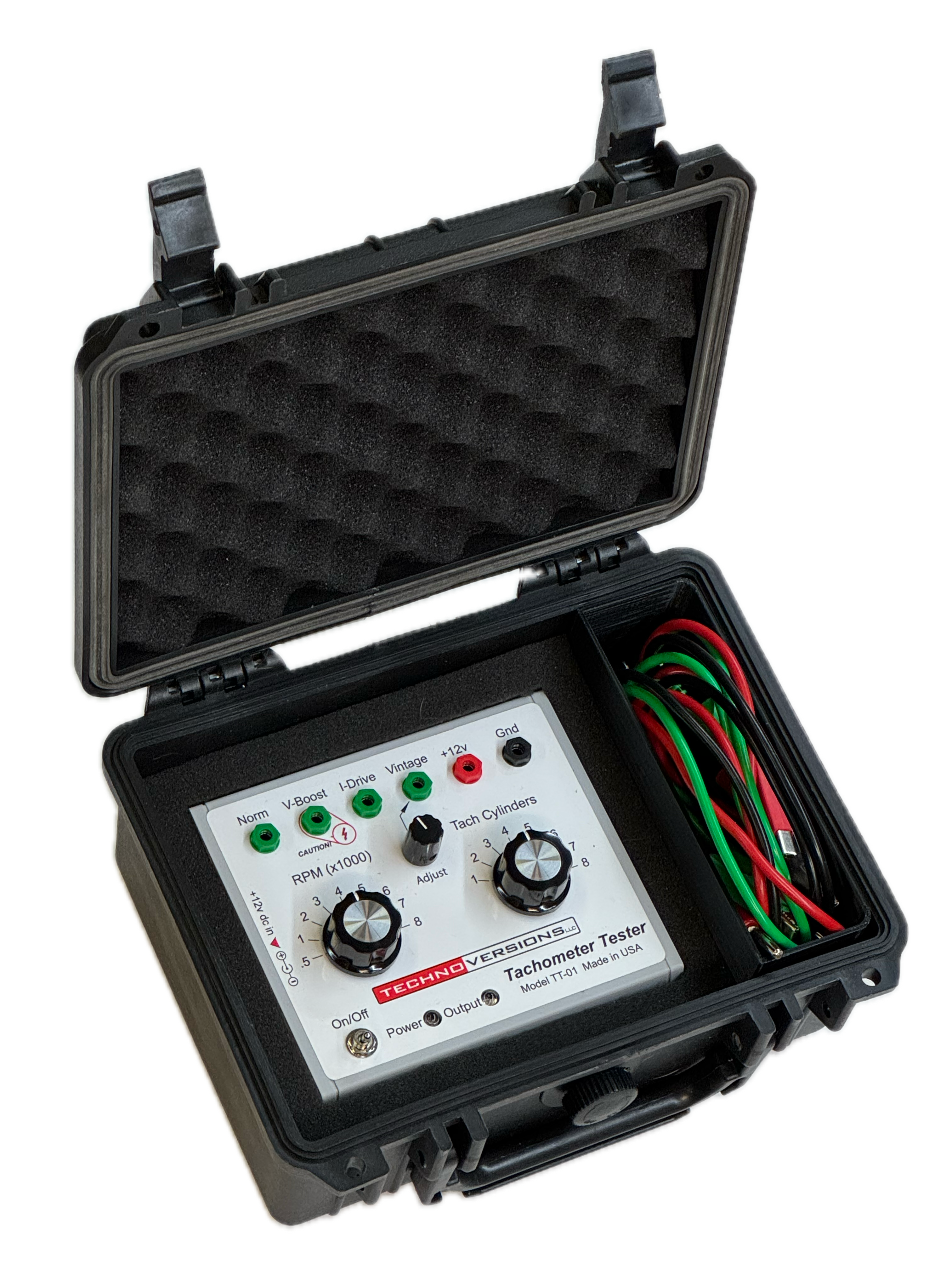

It allows you to easily connect a wide variety of tachometers, and test performance from 500 RPM up to 8,000 RPM. It can be used with tachometers of any cylinder-count between one and eight. Connect the red and black leads to power your tachometer, and the green lead to provide the drive signal. You then select the number of cylinders that the tachometer was designed for, and select the output RPM (500 RPM and 1,000-8,000 RPM in decade steps). If you don't know how many cylinders the tach is designed for, you can determine that by changing the cylinder switch until it gives the correct reading. The Tachometer Tester has adequate accuracy (+/-1%) to calibrate tachometers that allow adjustment.

It is powered by a 100-240 vac to 12 vdc power-pack for bench use, but can be powered by the vehicle if testing the tachometer while it is still installed. It includes high-quality, color-coded silicone alligator clip-leads that connect to banana jacks on the main unit.

The Model TT-01 is designed and manufactured in the USA.


Applications



The TechnoVersions Model TT-01 Tachometer Tester can test almost all tachometers. Here is a summary of each type that it can test:

Standard Voltage-Driven Tachometers

This is the type of tachometer most often used. These tachs are typically connected to the (-) terminal of the coil. The Tachometer Tester "Norm" terminal outputs a 12v signal similar to TachMatch and MSD. Some tachometers need the inductive kick from the coil to operate properly. For these, the "V-Boost" terminal provides the higher-voltage spike necessary. An example of tachomers requiring the extra voltage are VDO tachometers. By trying a tachometer on both of these terminals, you will know whether the tachometer requires the pulse.

Current-Driven Tachometers

This type of tachometer, used on Smiths RVI units, some of the '60's era Fords, and many of the early Datsuns can normally be identified by a loop in a wire near the back of the tachometer. They are normally connected between the ignition switch and the (+) terminal of the coil.

"Vintage" Tachometers

This type of tachometer uses an interface box (such as the Sun EB-seres) between the ignition system and the tachometer head. These tachometers have just two terminals on the back, labeled (+) and (-). The Tachometer Tester can drive these tachometers without the interface box. A TachMatch can be used to replace (or be installed within) the original interface box.

What won't it test?

The Model TT-01 will not work on CAN-bus tachometers. Also, it will not work on tachometers that use a "puck"-type interface box, such as the Stewart Warner 760 series - if you need support for this type of tachometer, contact the Accutach Co. in San Jose.


More Detailed Information...

Refer to the instruction manual for specifications, limited-warranty, return policy and more details about operation.

The Tachometer Tester can be shipped with either a US or Euro power pack at no additional charge. Unless notified otherwise, it is shipped with the US plug. Also available, at additional cost, is a remote battery pack that allows the tester to be used in places with no AC power. For example if you decided to take it to a swap met. See Remote Power Pack Description for details.

Instruction Manual

Purchase

Special Introductory Offer: Free Shipping!

Tachometer Tester Model TT-01

Includes the basic unit, power-pack for 100-240 VAC operation, test leads, and instruction manual. Free USPS Priority Mail shipping applies to US addresses including APO and FPO. Additional shipping cost is necessary for other shipment destinations, please see the added postage cost below for details. Sales tax is added for shipments going to Washington State.
$249 with free domestic shipping


International Shipping

International shipments are via USPS Priority International. Shipments typically take 10-12 days to arrive.

Additional shipping charge for shipment to Europe and UK - $58.00

Additional shipping charge for shipment to Australia and NZ - $79.00

Additional shipping charge for shipment to Canada - $34.00
