Welcome to the TechnoVersions web site.  We are proud to offer TachMatch - a solution to making your tachometer work, when things just don't match up like they did at the factory.

Did you do an engine conversion?  Maybe change the type of tachometer drive signal by installing a different ignition?  Install an engine with more cylinders?  You don't have to change your tachometer or instrument panel - you can quickly and easily install a TachMatch into your car, truck or boat.





How TachMatch Works...





Tach Input:

TachMatch accepts most standard tachometer inputs.  If you have a standard coil and points ignition, connect TachMatch to your coil.  If you are using an aftermarket system to control the coil, such as an MSD, TachMatch accepts its tachometer output signal.  If you have a typical GM HEI ignition, the tachometer output signal drives TachMatch.



Cylinder Conversion:

If your tachometer is designed for a different number of cylinders than your engine, TachMatch can change the frequency appropriately to correctly drive your tachometer.  Select from 1:1 (if your cylinder count does match), 8:6, 6:4 or 8:4 ratios.

Tach Drive Output:

TachMatch sends the signal to your tachometer.  Tachometers are designed two ways.  They either accept a signal based on a voltage or a current pulse. TachMatch is designed to output to both types of tachometer.

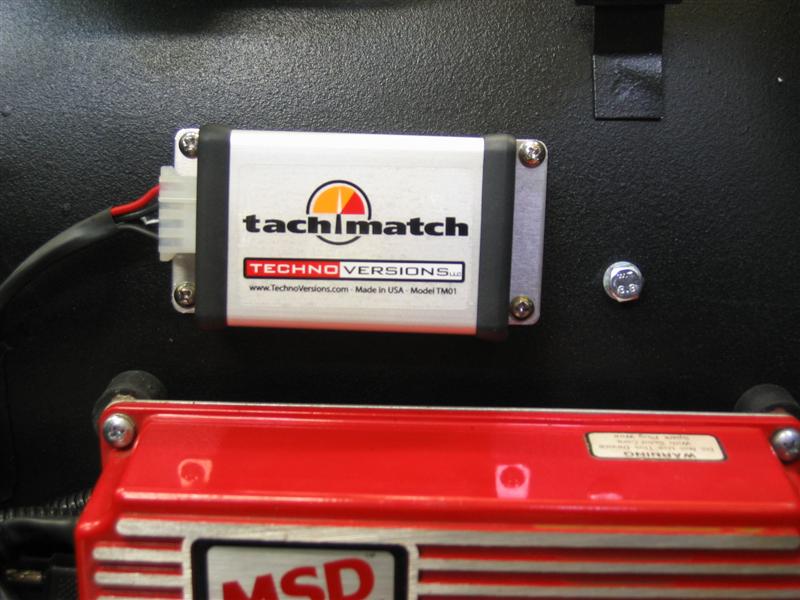

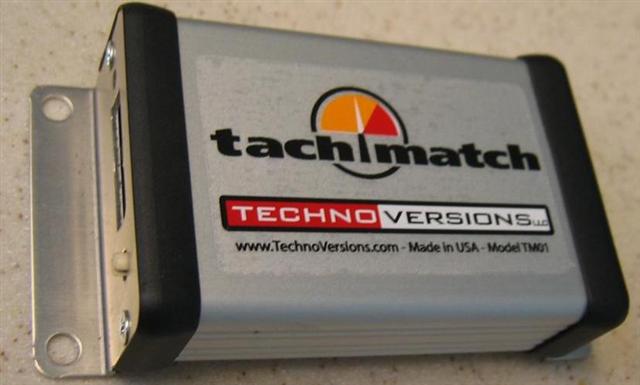

TachMatch is designed to an industrial quality level with precise computer-controlled internal circuitry.  Unlike most accessories you get for automotive applications, TachMatch is designed using a sturdy aluminum extrusion as a housing.  It installs with high quality stainless-steel screws, which are included.  The electronics inside are encapsulated with special coatings to ensure vibration and environmental resistance.  Rather than having permanent wires, TachMatch uses a commercial-quality plug and connector for a rugged, long lasting, electrical installation.  To help solve any installation problems, it includes diagnostic tools, such as a LED that indicates power and if it is being triggered, to a special test output that can ensure that it is connected properly to your tachometer.

While TachMatch has been designed to accommodate a wide range of applications, we can't anticipate everything that you might try to mix and match.  So if you find yourself in the unlikely predicament that it doesn't work in your application, TachMatch comes with a money back guarantee*.



         Price:  $79.95



           TachMatch is designed and made in the USA







* see our warranty tab for product return details
